Overview

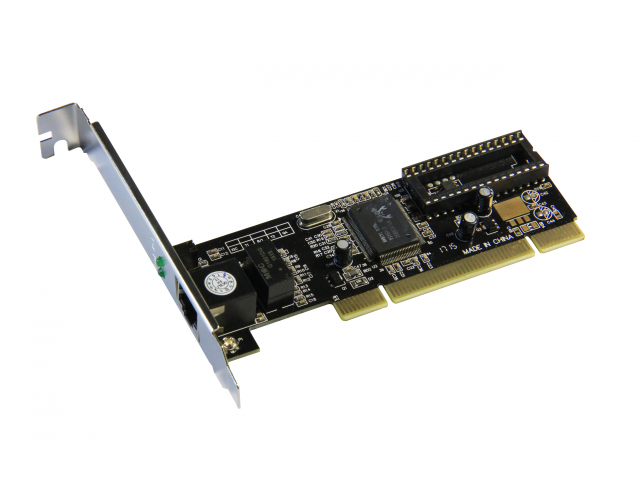

The ENLGA-1320 is a high performance Ethernet adapter built on 32-bit PCI bus architecture and proven technology
of Gigabit Ethernet. Working 10 times faster than fast Ethernet adapter, IT would deliver what you need on
a current wire-speed network.
The ENLGA-1320 is upgraded to Gigabit no longer means expensive re-cabling with fiber optic cables. Instead of costly
fiber optic cables, The ENLGA-1320 use network-grade copper cables. All you need is installing new Gigabit adapters and
switches without changing existing CAT5 cabling.
The ENLGA-1320 is a high performance Ethernet adapter built on 32-bit PCI bus architecture and proven technology
of Gigabit Ethernet. Working 10 times faster than fast Ethernet adapter, IT would deliver what you need on
a current wire-speed network.
The ENLGA-1320 is upgraded to Gigabit no longer means expensive re-cabling with fiber optic cables. Instead of costly
fiber optic cables, The ENLGA-1320 use network-grade copper cables. All you need is installing new Gigabit adapters and
switches without changing existing CAT5 cabling.
Features
• Auto-Negotiation to the highest available speed
• Build-in FIFO buffers reduce overhead of memory transfers
• Compliant with 10/100/1000 Mbps Full/Half-Duplex triple-speed operation
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Drivers on the disc for Windows 7/98/98SE/2000/XP, Windows Vista 32/64, NetWare 4/5/6.X, and Linux driver
Specification
Compliance with IEEE802.3ab 1000BASE-T
Gigabit Ethernet standards
IEEE802.3uFast Ethernet standards
Operability in 32-bit,33/66MHz slot servers and workstations
Ports: One 10/100/1000 Mbps Auto-Negotiation RJ-45 port
Support Crossover Detection & Auto-Correction Wake-On-LAN and remote wake-up support
Support Full Duplex flow control (IEEE 802.3x)
Support Jumbo Frame transfers
Support Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and large send offload
Support PCI V2.3;2.2; 2.1, 32-bit, 33/66-MHz
Support PCI Message Signaled Interrupt (MSI)
Support IEEE 802.1Q VLAN tagging
Support IEEE802.1P Layer 2 Priority Encoding
Support up to 128K byte Flash Boot ROM (Option)
Two LED indicators: 10/100/1000M Link, 10/100/1000M Act
Operating Temperature: 0℃- 40℃ (32℉- 104℉)
Operating Humidity: 10% ~ 90% (non-condensing)
Dimension: 125*121*22 mm
Certificate: FCC Class B, CE
